WEIGHING AND DOSING SYSTEM
The weighing and dosing of bulk material are one of the most critical equipment in any process plants to ensure highest efficiency, energy saving and product quality. With our technology partners, we will be able to add-value to provide solutions in the weighing and dosing of material for your process application.
We could offer the following equipments:

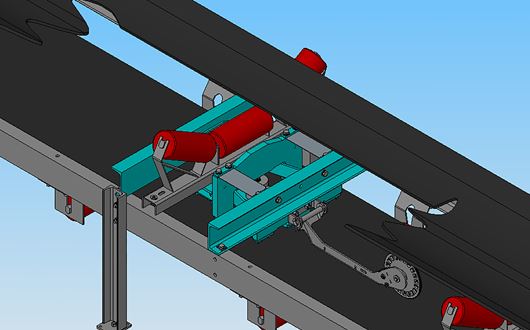

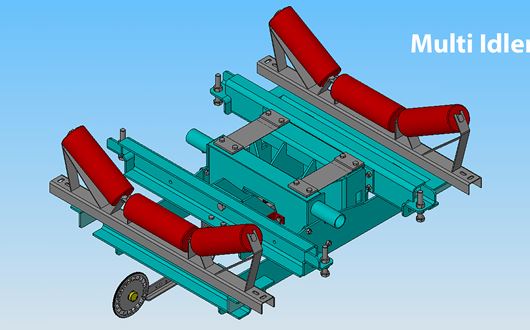

BELT WEIGHER

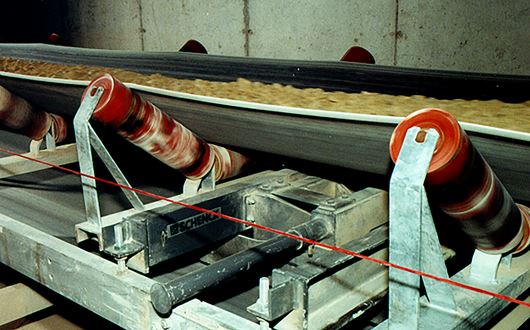

- Schenck Process Belt Weigher MULTIBELT
- To measure continuous material flow in different feed rates
- Suitable for feed rates up to 15,000tph
- Weighing accuracy +/- 0.5%
- Simple and quick installation

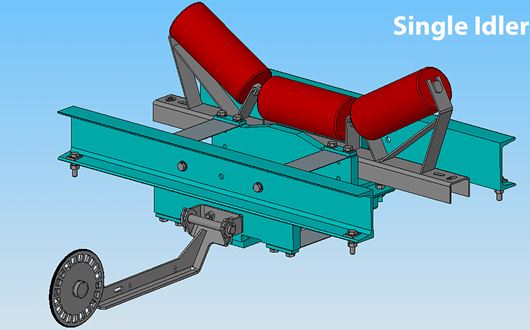

- Can be configured in single-idler belt weigher or multiple-idler belt weigher for higher weighing accuracy

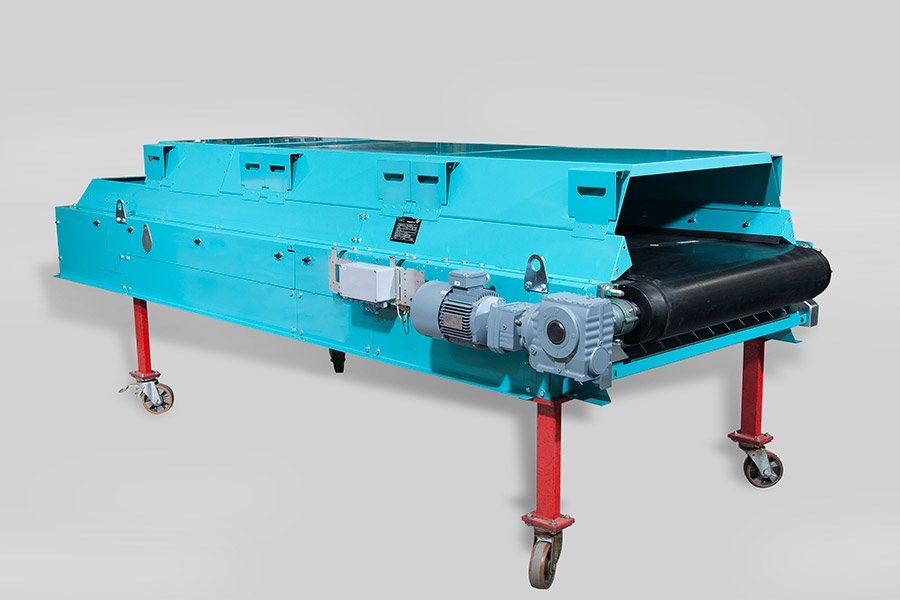

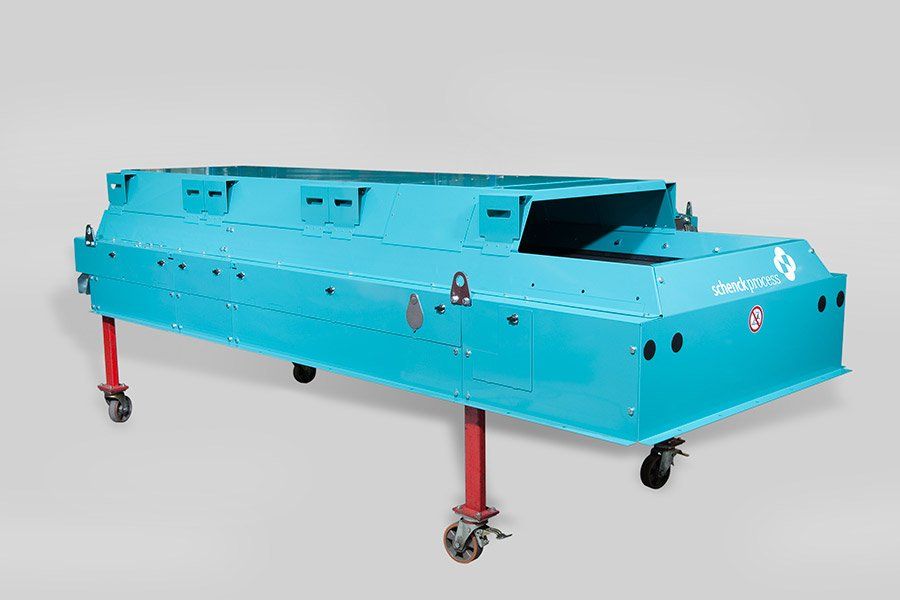

Belt Weighfeeder

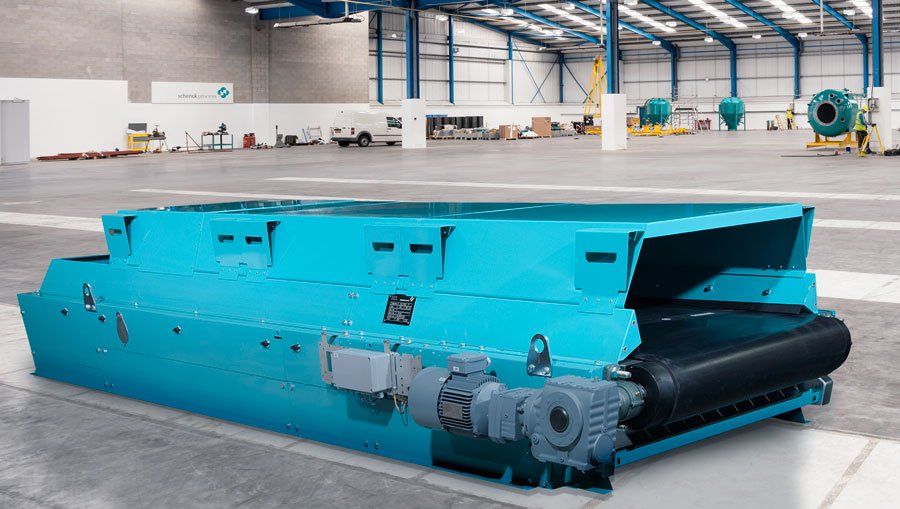

- Schenck Belt Weighfeeder MULTIDOS
- Suitable for feed rates up to 700tph
- For material temperatures up to 170deg C
- High-tech direct-weighing technology ensures high feeding accuracy +/- 0.25% to 0.50%
- Mechatronic design with compact drive system
- Easy belt exchange mechanism
- Available in dust-proof housing

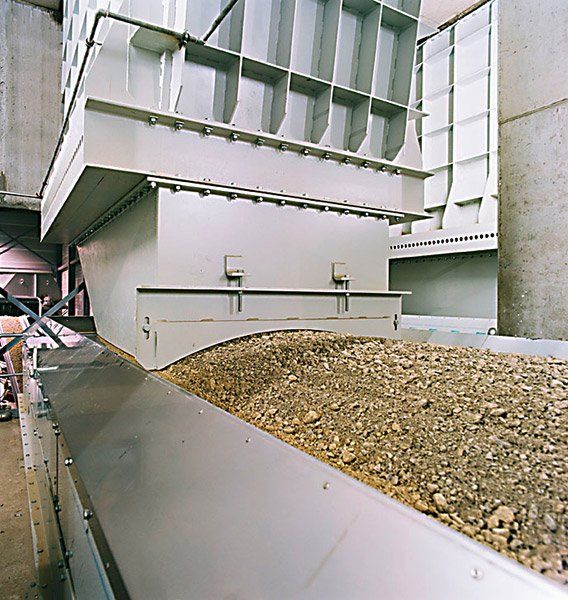

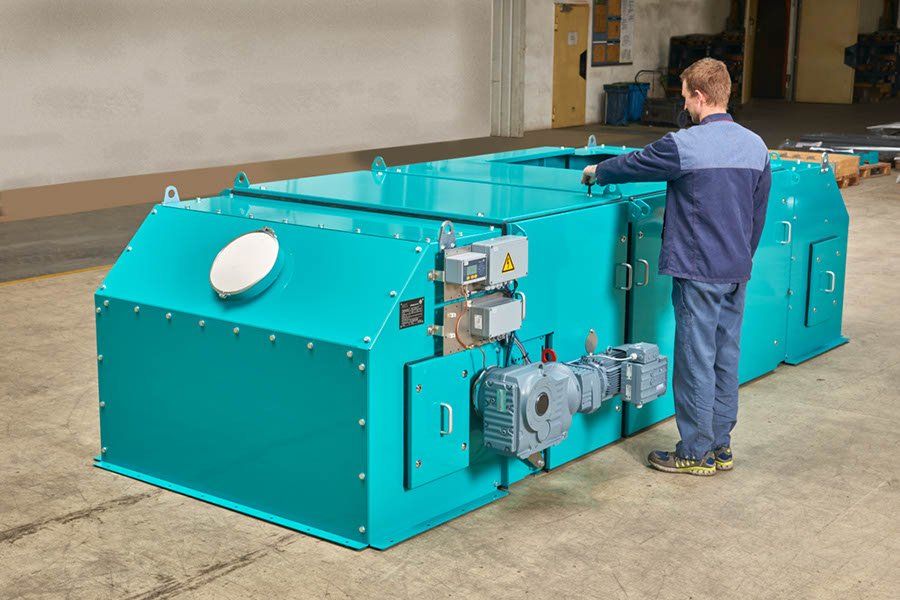

APRON WEIGHFEEDER

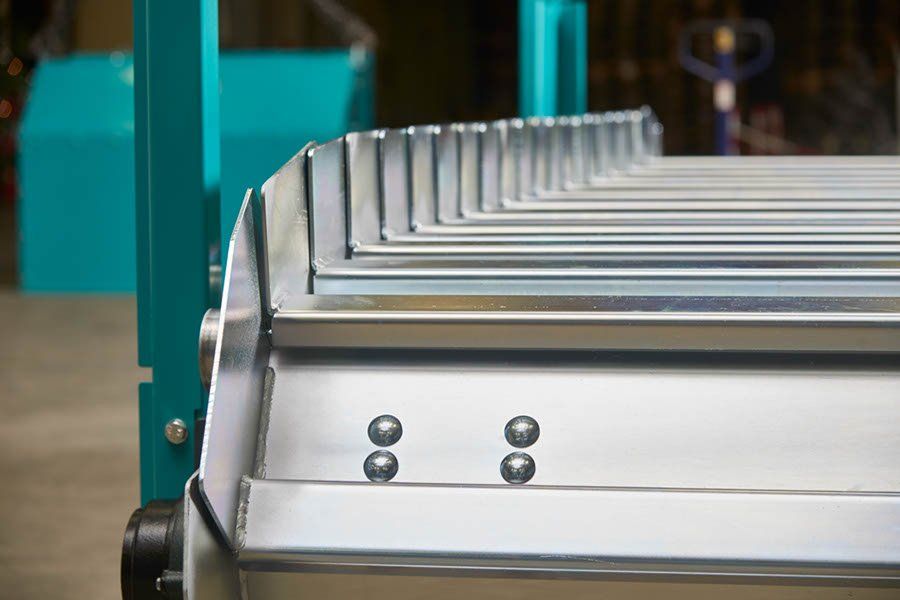

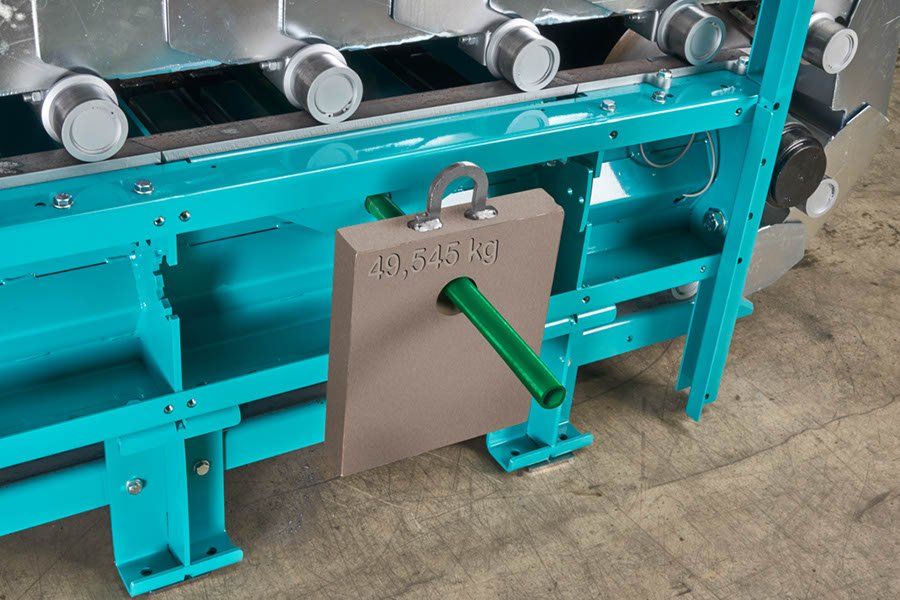

- Schenck Apron Weighfeeder Type MULTIDOS VDP
- Suitable for feed rates up to 980tph
- For very hot materials up to 250deg C
- High-tech direct-weighing technology ensures high feeding accuracy +/- 1%
- Combination of bin extraction and feeding ensures low investment cost
- Self-cleaning apron plates for hot bulk solids
- Special apron plates for wet, sticky bulk solids
- Pin gate can be integrated into frame

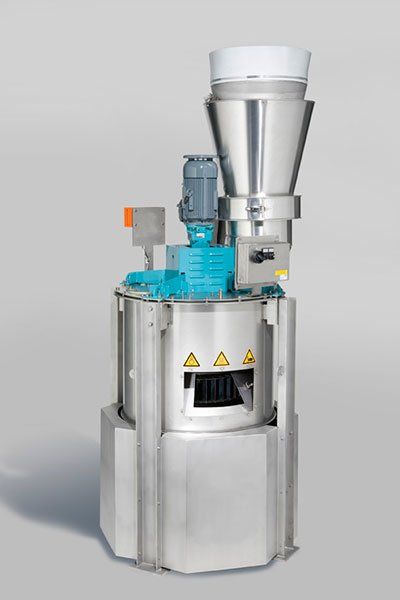

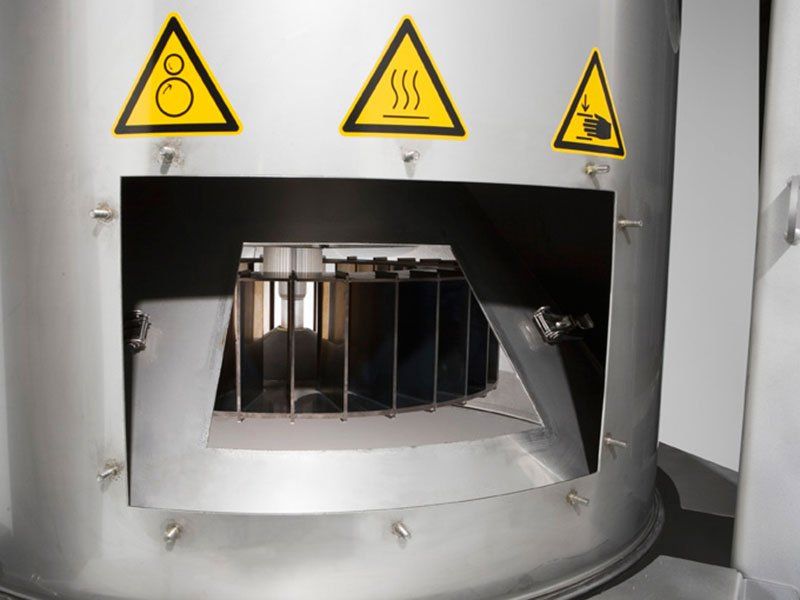

CORIOLIS FEEDER
SCHENCK MULTICOR® S mass flow-rate feeding devices are used wherever large amounts of bulk solids need to be continuously established, controlled and fed. They provide precise feeding according to the Coriolis principle, a unique measuring principle for bulk solids based on direct, fast measured value acquisition.
With >2,000 MULTICOR®s in the market, developing its use for the weight measuring and feeding of bulk material on a continuous basis is an application extension of this very successful longstanding product.

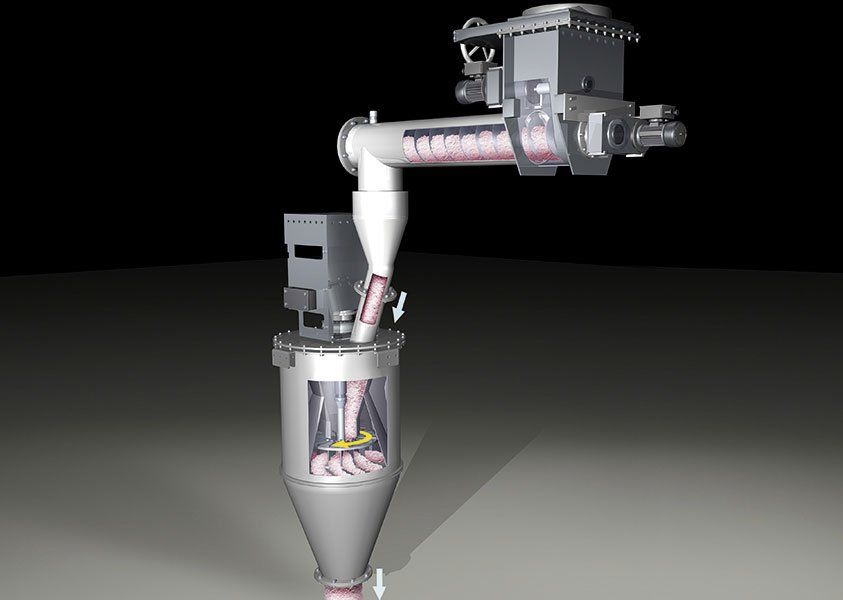

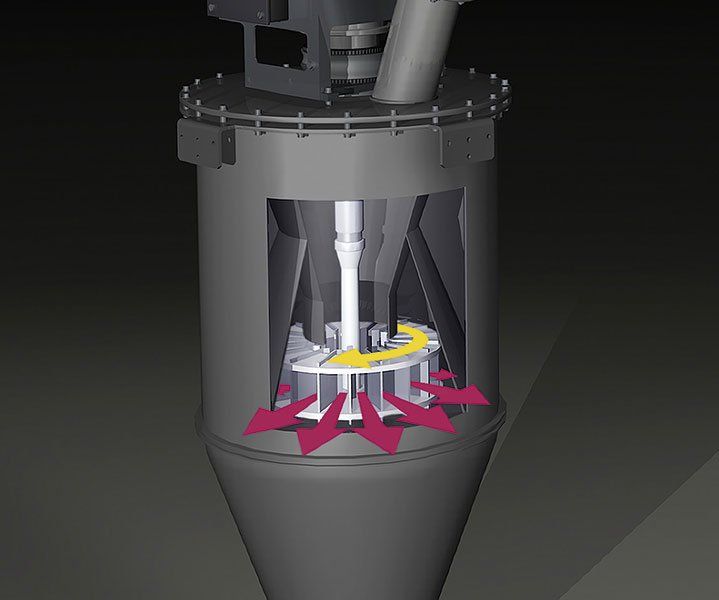

MULTICOR® Operating Principle:

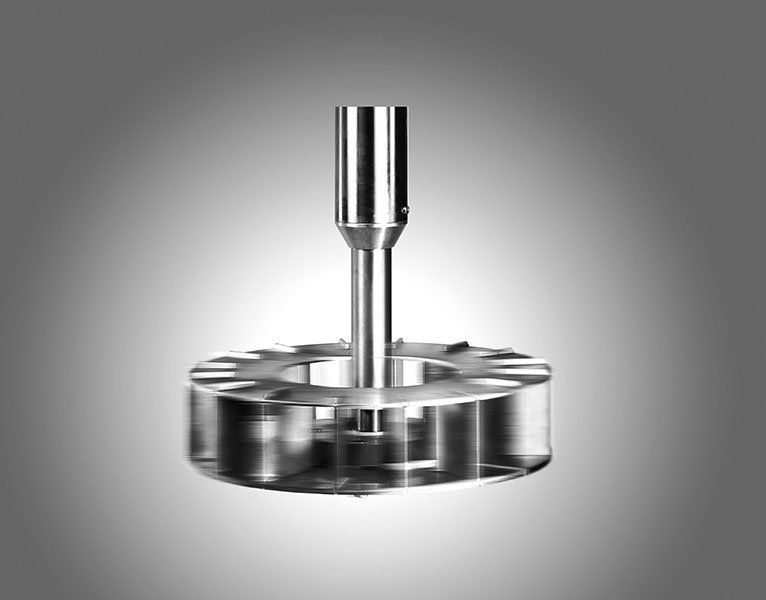

- Continuous fixed-speed rotating measuring wheel contained within a dust-tight body
- Bulk material enters the centre of the measuring wheel and is centrifugally accelerated outwards
- This action creates a torque, which corresponds directly to the feed rate
- The torque is measured with a measuring module (Schenck Process load cell)
- Data communicated from the measuring module to Schenck Process

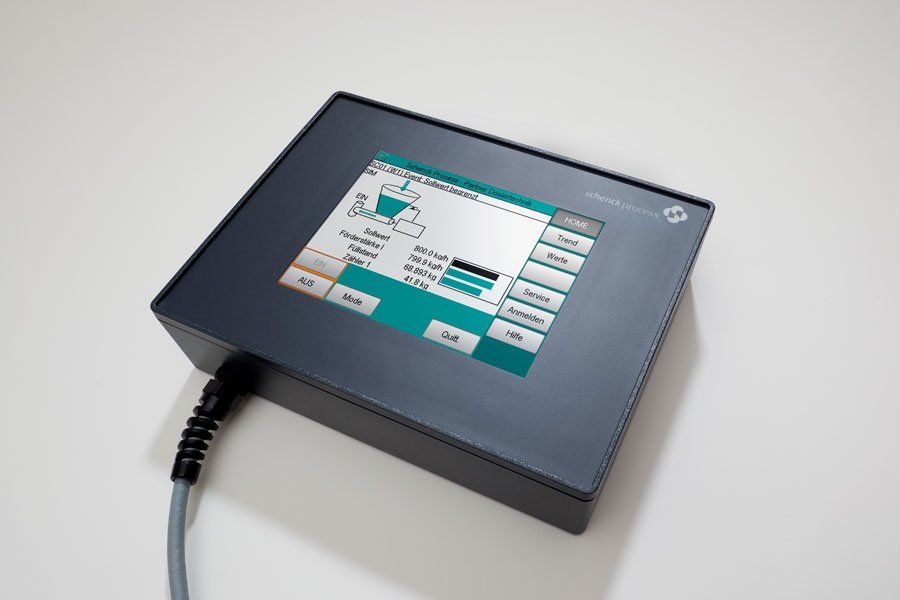

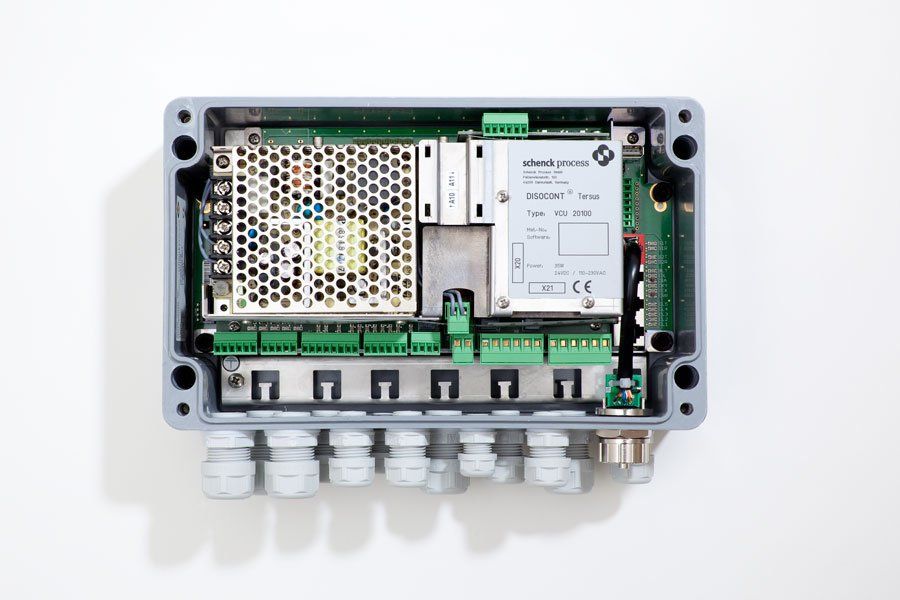

- DISOCONT® control system
| MULTICOR S | MULTICOR R | |
|---|---|---|
| Throughput (Vol.) | 40 - 160 m3/h | 40 - 800 m3/h |
| Accuracy (+%) | From + 0.5% upwards | From + 0.5% upwards |
| Setting Range | 1:10 | 1:10 |
| Operating Pressure | -10mbar to +30mbar | -85mbar to +25mbar |
| ATEX (Explosion) Rating | || 1/2/3 GD | || 3 GD |

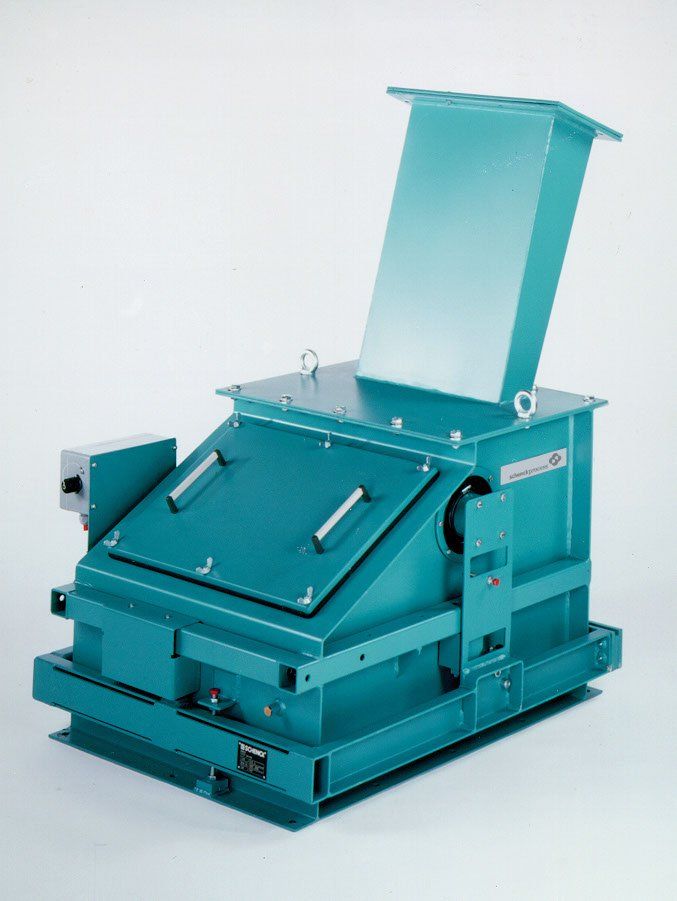

FLOW METER
Schenck Solids Flow Meter MULTISTREAM
- Suitable for pulverized or granulates up to 10mm
- Suitable for feed rates up to 1000tph
- For material temperatures up to 100deg C
- High-tech direct-weighing technology ensures high feeding accuracy +/- 2%
MULTISTREAM® G Solids Flow Meters comprises:
- Sheet metal housing
- Guide and measuring chutes
- Load cell
- Measuring force transmission to load cell arranged outside of material room
- Cable junction box

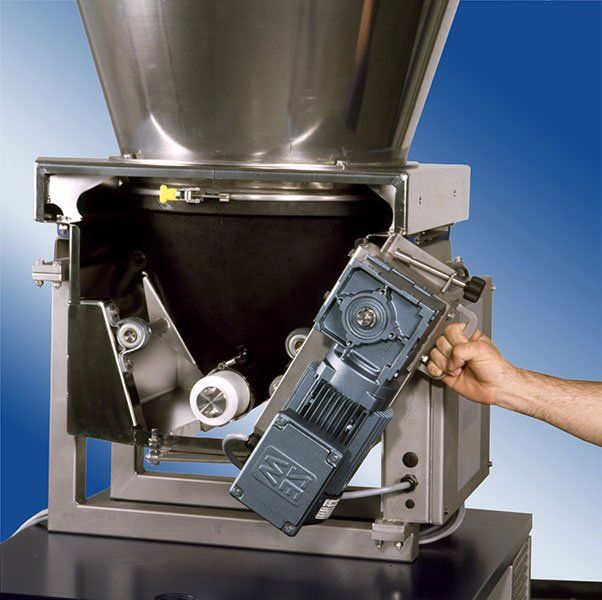

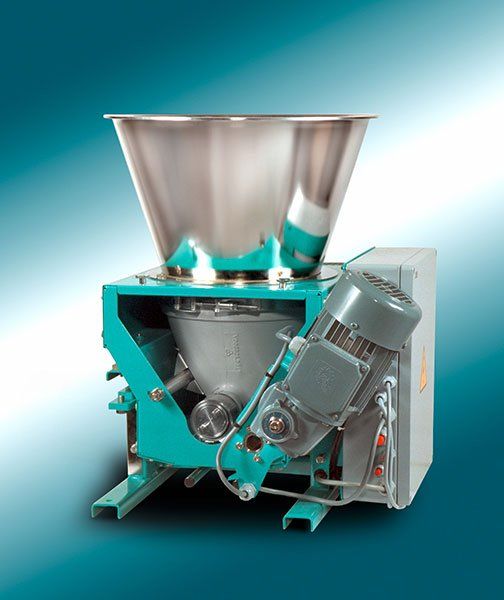

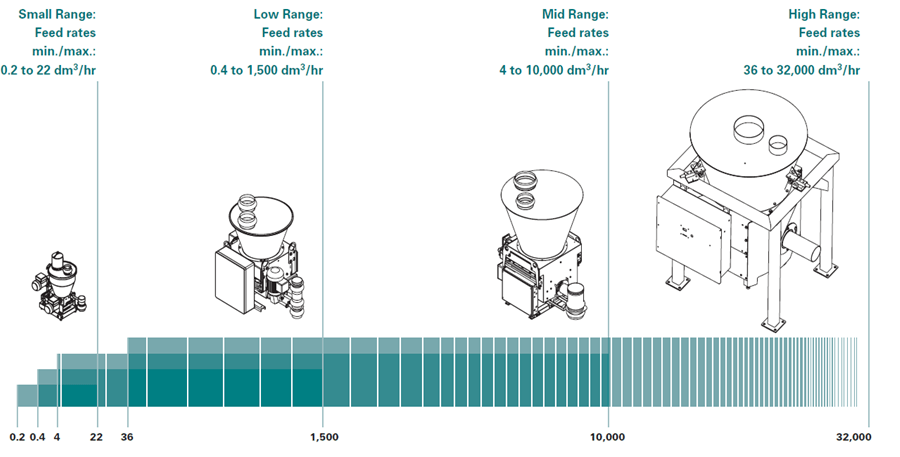

LOSS IN WEIGHT FEEDER

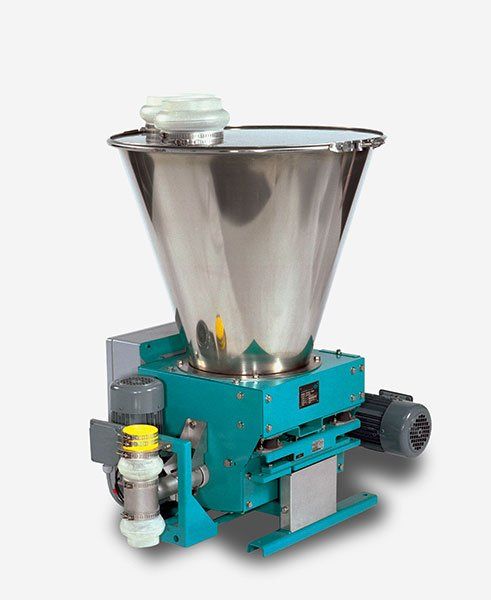

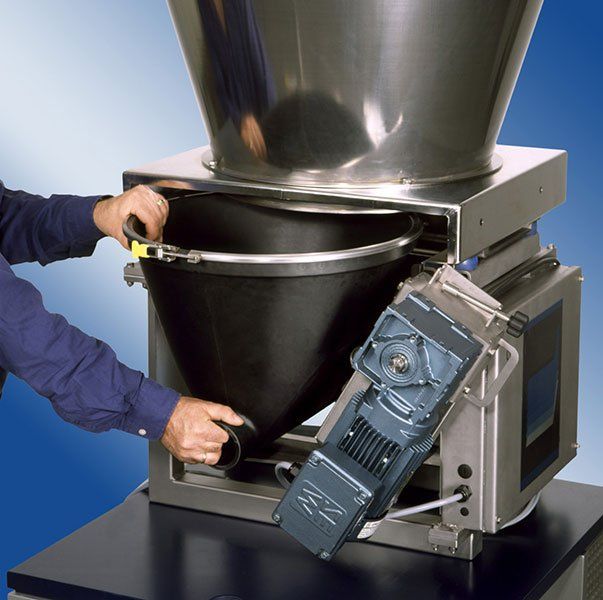

Schenck Loss-In-Weight Feeder MECHATRON
- Feed System for Gravimetric or Volumetric bulk feeding
- Suitable for powder, grit, chips, granules, pellet and fibre
- High feed accuracy +/- 0.5%

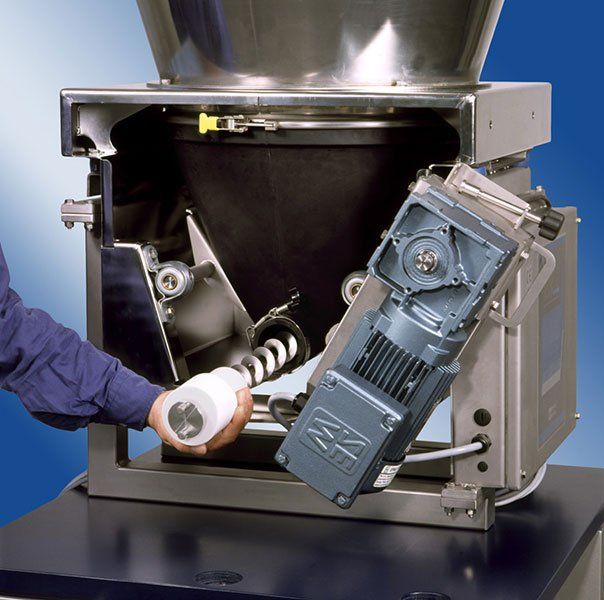

- Different dosing screw design available for various material
- Easy integration into production process

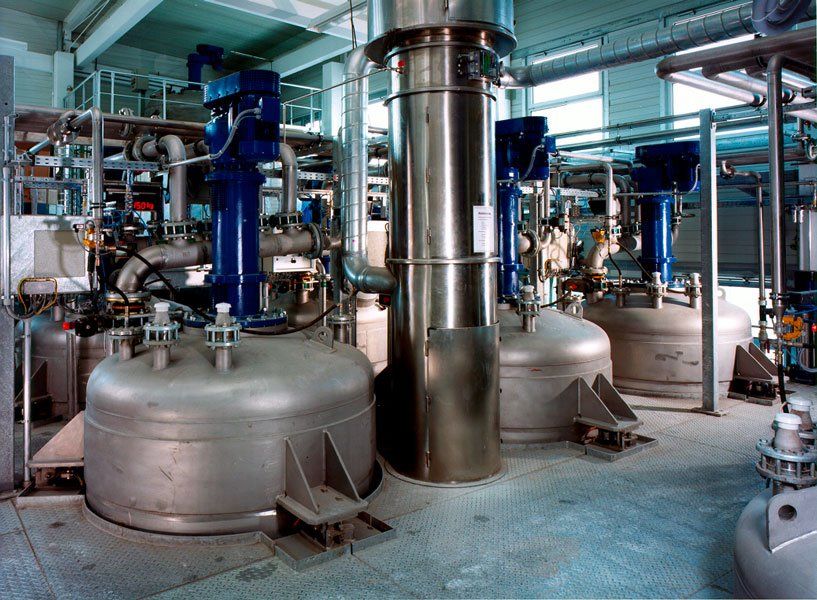

BIN WEIGHING
Easy to integrate with highly accurate results

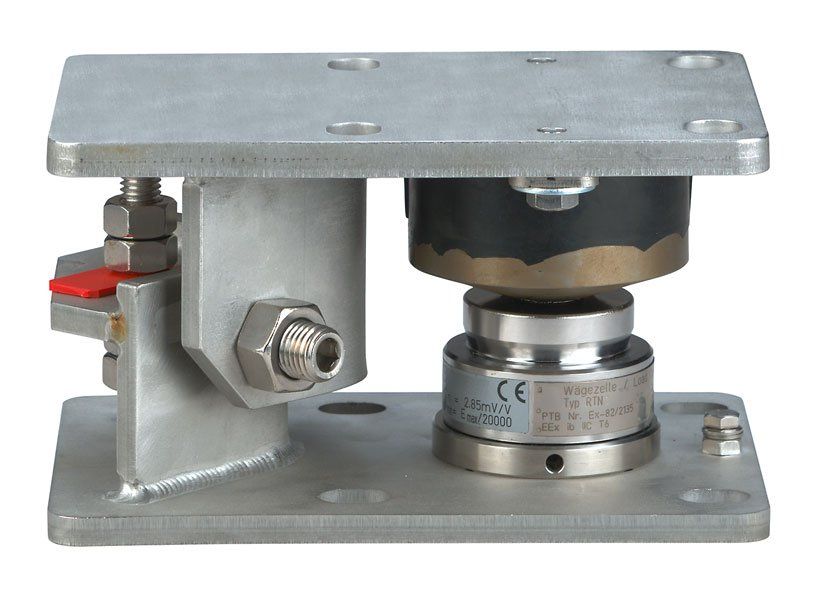

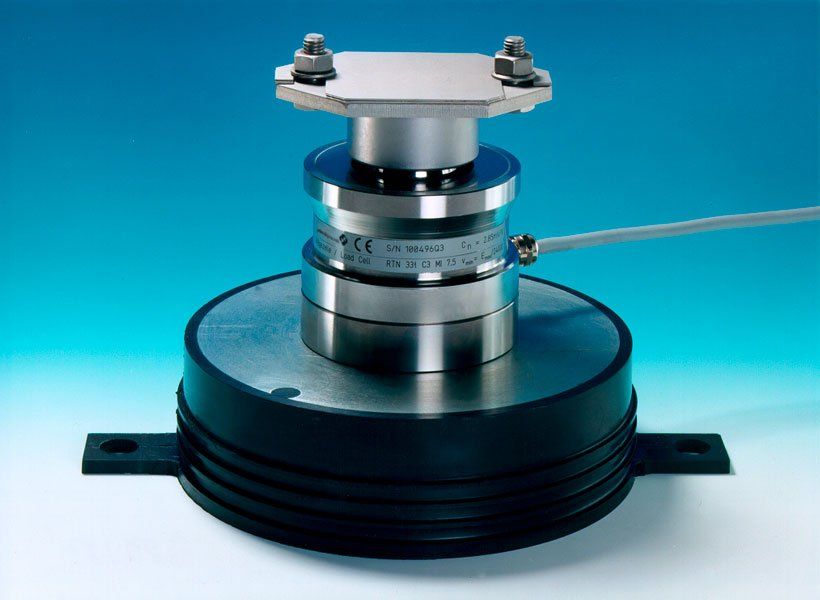

The compact unit consists of a load cell and mount designed for simple integration into the bin support. The advantage is that the mount compensates for the forces created by internal stirring systems. Weighing is recorded outside the bin without product contact, thus eliminating any influence that product characteristics might have had on the result.
Function
The fill level data can be communicated to the customer’s control system in various ways e.g. analog or digital.

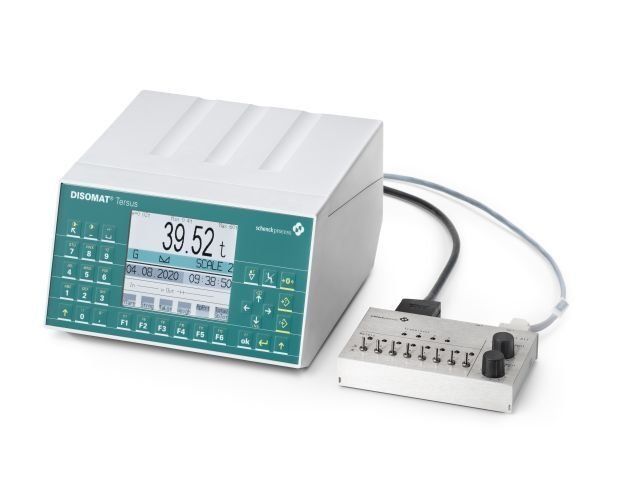

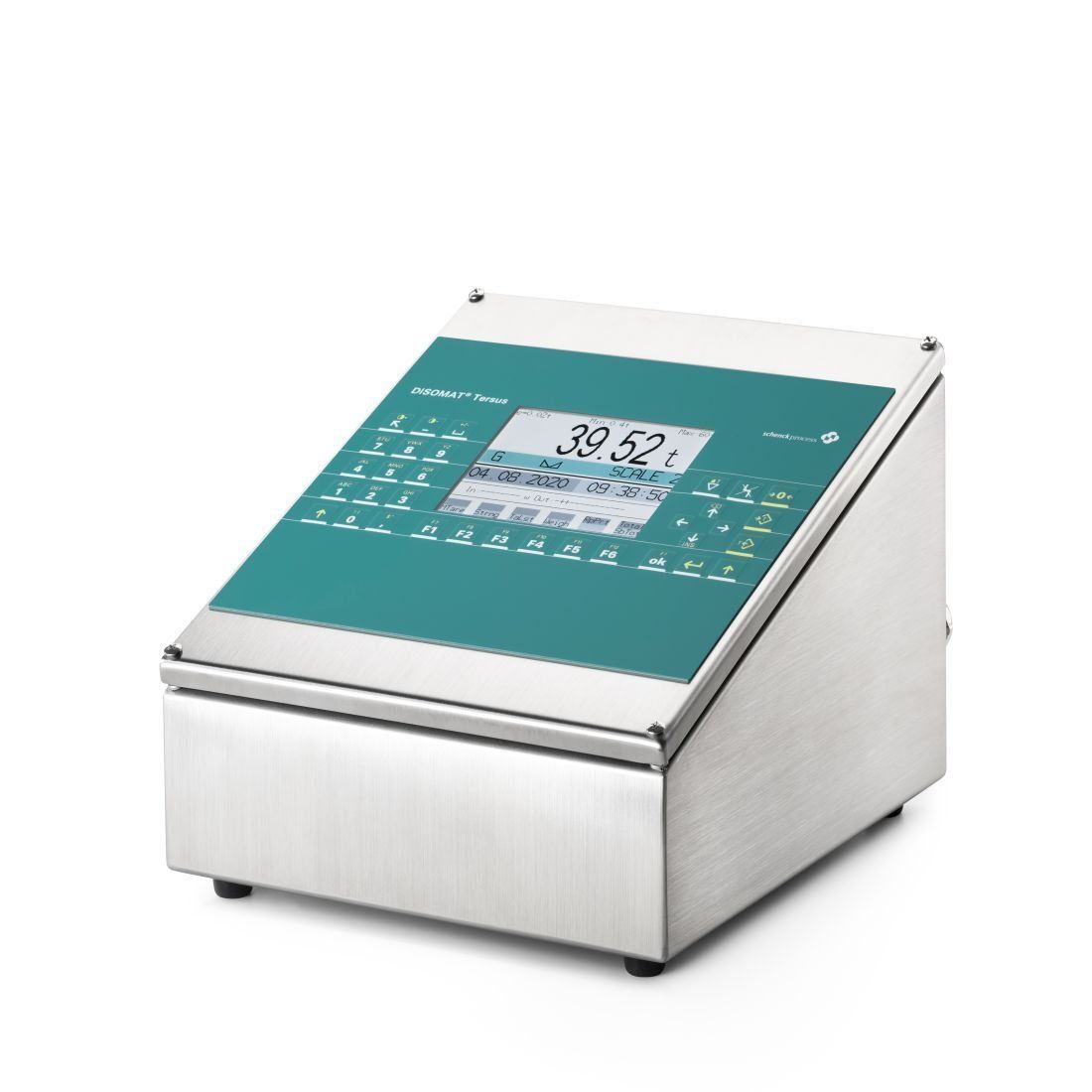

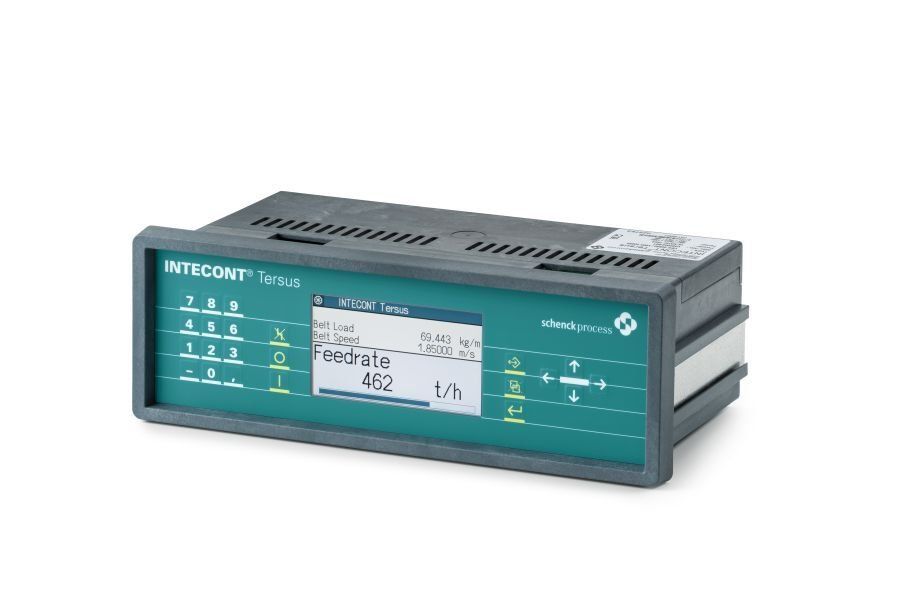

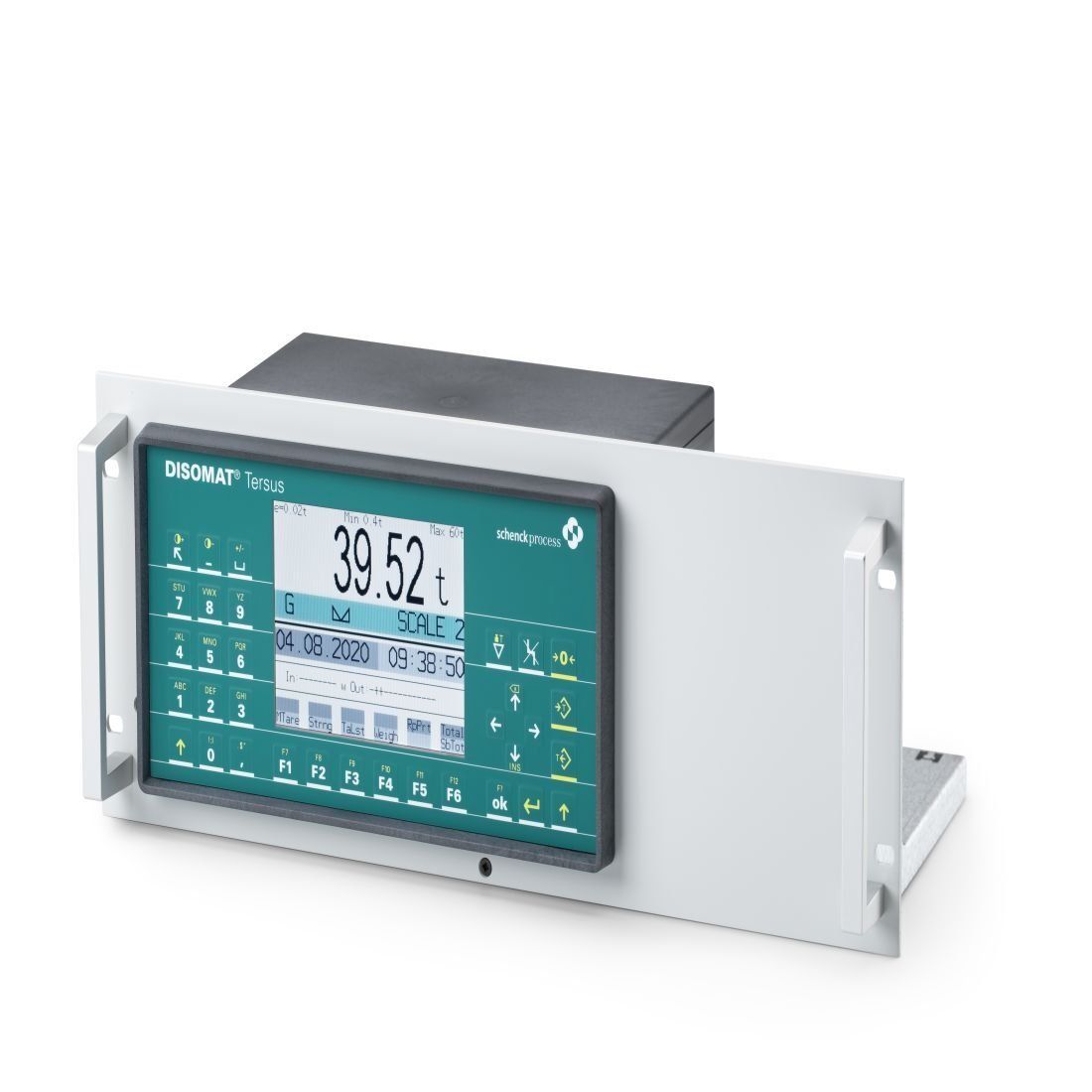

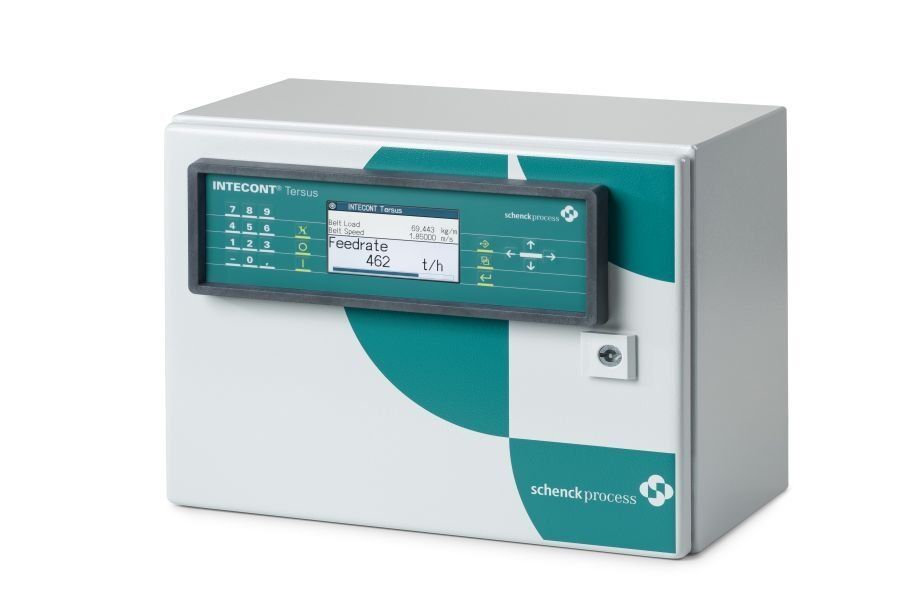

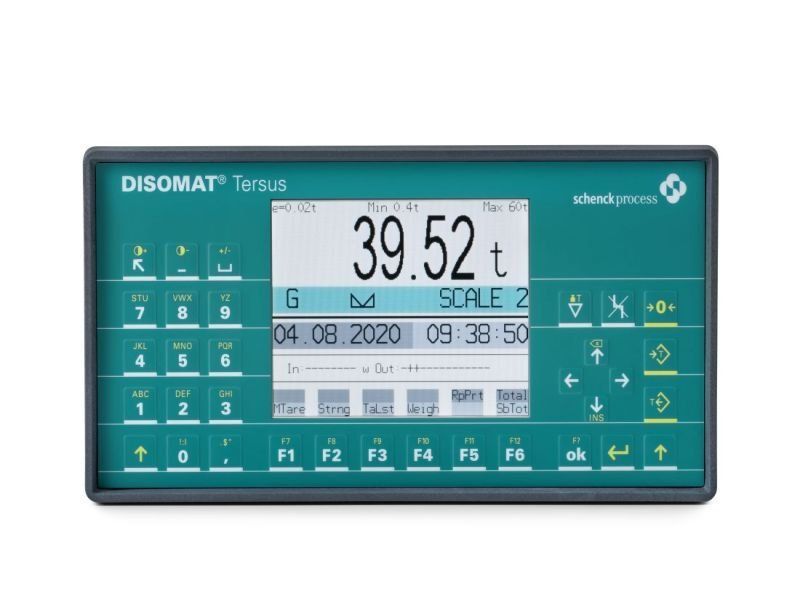

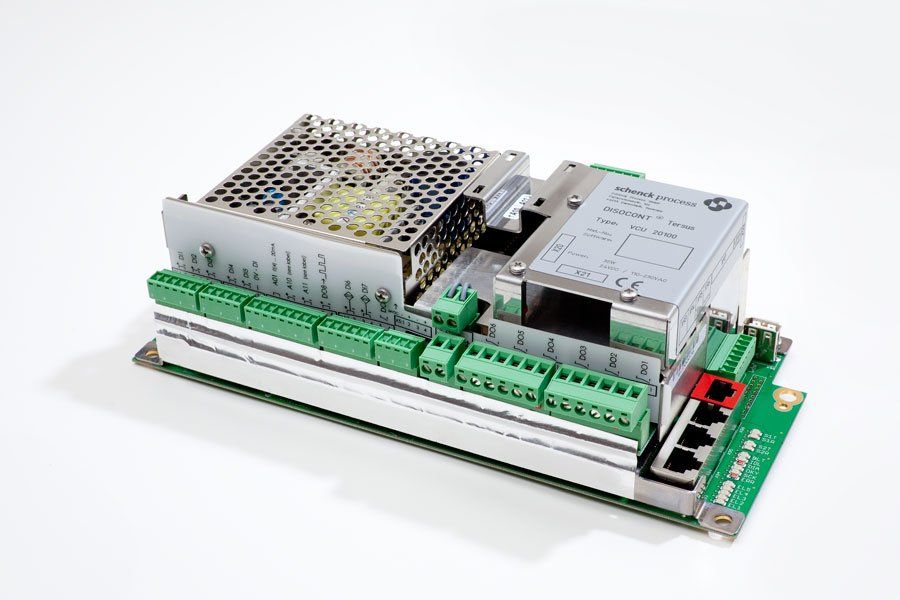

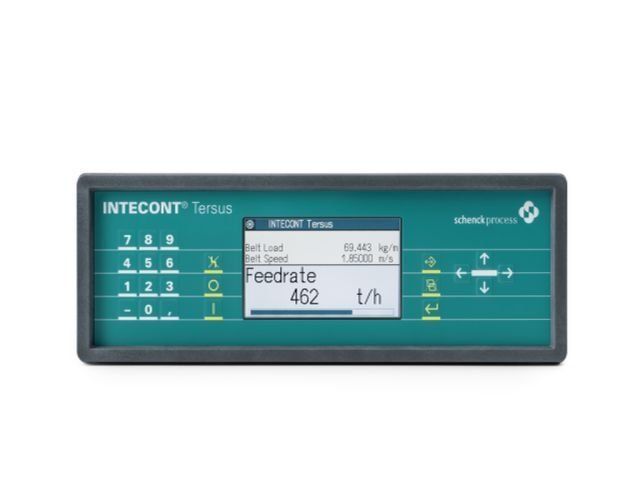

WEIGHING CONTROLLER
We are a premier industrial equipment and system provider based in Kuala Lumpur. We offer complete industrial solutions, from designing to building custom-made equipment and systems, that suit your every process needs.
